| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Type | Lamination Machine |
| Country of Origin | India |
| Shape | Rectangular |
| Click to view more | |
Product Details
Material
Mild Steel
Operation
Easier Operation
This machine can be applied for lamination of cardboard to cardboard, cardboard to corrugation paperboard. A, B, C, D, E, F, N flute corrugation paperboard can be applied.
All electrical and electronic parts are of the international famous brand. Delta touch screen is attached for easier operation.
Technical Data
| Size (IN) | Motor (HP) | Heating load (KW) | Floor space (in²) | Weight (MT) | Prod. 8 Hrs. paper in 120 gsm (Ton) | Speed Rft (/min.) | Height (in) |
| 32” | 3 | 18 | 7” x 16” | 2.8 | 1 | 50-80 | 76” |
| 42” | 4 | 22.5 | 8” x 16” | 3 | 1.5 | ” | ” |
| 45” | 4 | 24 | 8½” x 16” | 3.3 | 2 | ” | ” |
| 52” | 5 | 27 | 9½” x 17” | 3.8 | 2.5 | ” | ” |
| 62” | 7.5 | 31.5 | 10½” x 17½” | 5 | 3 | ” | 80” |

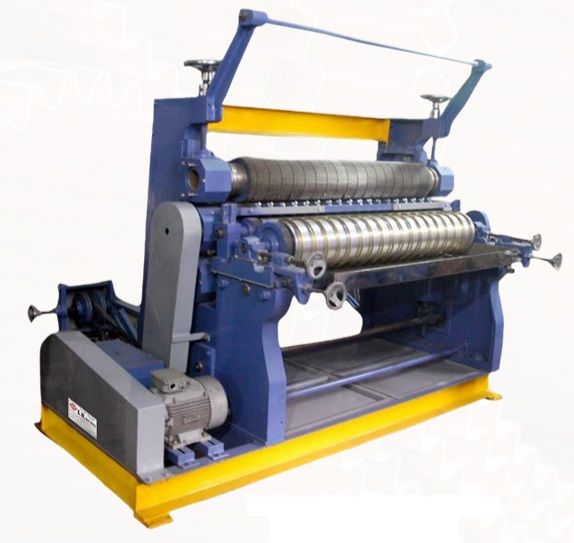

Looking for "Verticle Corrugation Machine" ?
