| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Specialities | High Strength,Better Efficiency,Long Functionality,Reliable Performance |
| Type | Automatic Corrugation Machine |
| Country of Origin | India |
| Click to view more | |
Product Details
Shape
Rectangular
Material
Mild Steel
Ply
3
Specifications
3 Ply,High Speed Bearing Mounted With Variable Speed Drive,Drum Type - 2 Nos,Self Loading - 3 Nos,Duplex Before Gluing,On Line Simplex,Nine Hot Plates,Heavy Duty,On Line,Heavy Duty,Complete Fabrication, Synchronization Of All Machines, Overhead Bridge, Co

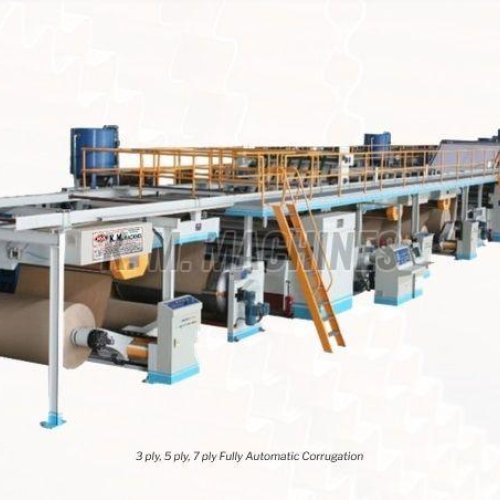

We are offering an exclusive range of Automatic Corrugation Machine. Quality-approved 3 / 5 Ply Automatic Corrugation Plant comes under this range. These products are appreciable among our valuable customers for features like high strength, better efficiency, long functionality and reliable performance. Equipped with all the latest tools & machines, the offered range is manufactured using quality raw material at our infrastructure. Besides, clients can avail these products according to their needs.
Specifications
5 ply corrugated box making plant:
- High speed bearing mounted corrugation machine with variable speed drive- 2 nos
- Drum type heaters – 4 nos
- Self loading reel stand- 5 nos
- Triplex heating unit before gluing
- On line duplex pasting unit
- Heating cooling and drying chamber (consist of fourteen hot plates)
- Heavy duty pull unit
- On line creasing and slitting unit
- Heavy duty cut off unit
3 ply corrugated box making plant:
- High speed bearing mounted corrugation machine with variable speed drive
- Drum type heaters – 2 nos
- Self loading reel stand- 3 nos
- Duplex heating unit before gluing
- On line simplex pasting unit
- Heating cooling and drying chamber (consist of nine hot plates)
- Heavy duty pull unit
- On line creasing and slitting unit
- Heavy duty cut off unit. The plants above include complete fabrication and synchronization of all machines together
- Overhead bridge and conveyor take up belts. Motorized web adjustment unit, gangway and stairs
