| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Driven Type | Elecric |
| Rated Power | 1-3kw |
| Voltage | 110v |
| Click to view more | |
Product Details
Color
Natural
Weight
100-1000kg
Warrenty
1 Year
Automation Grade
Semi Automatic
Application
Paper Cutting
Type

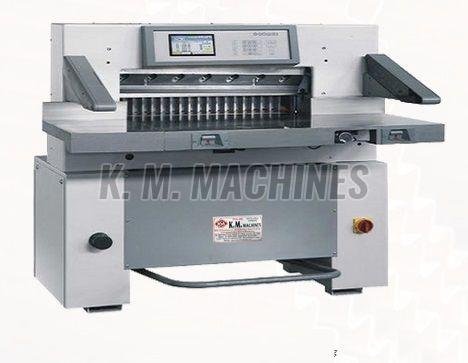

Semi Automatic Paper Cutting Machine
Friction clutch system for maximum efficiency and minimum maintenance. Hand clamp and Foot Clamp for smooth and easy operation Easy replacement of knife. Fine adjustment of knife height by eccentric levers. Adjustable back gauge for accurate parallelism with knife edge. Device provided with locking arrangement to avoid shift in the position of back gauge during operation. Safety and saving of space. Centralised lubrication of moving parts.
In the interest of product upgradation/improvement, the manufacturer reserves the right to change the specifications and features without notice.
Technical Data
| Machine Size | 33" (84 cm) | 36" (91 cm) | 43" (109 cm) |
| Length of Cut | 33" (84 cm) | 36" (91 cm) | 43" (109 cm) |
| Width of cut | 33" (84 cm) | 36" (91 cm) | 43" (109 cm) |
| Pile Cut | 4" | 4.5" | 5" |
| Cuts per Minute | 30 | 28 | 25 |
| Power Required | 2 H.P. | 3 H.P. | 3 H.P. |
| Space Reqd. | 5.5'×5.5'×6' | 6.5'×6.5'×6' | 7'×7'×6' |
| Gross Weight | 1600 Kgs. | 1800 Kgs. | 2000 Kgs. |
