| Business Type | Manufacturer, Exporter, Supplier |
| Type | Hydraulic Fully Automatic Paper Cutting Machine |
| Cutting Length | 840 Mm (33 |
| Cutting Width | 840 Mm (33 |
| Click to view more | |
Product Details
Clamp Opening
100 Mm (4
Cuts Per Minute
30
Power Required
2 H.P.
Power For Motorized Back Gauge
½ H.P.
Machine Dimensions
1650 X 1650 Mm (66

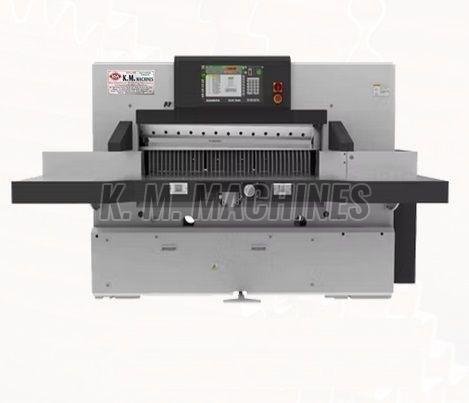

A Hydraulic Fully Automatic Paper Cutting Machine is an advanced device designed for high-precision cutting of paper, cardboard, and similar materials in bulk. It features hydraulic power for blade operation and automated controls for clamping, feeding, and cutting. Equipped with a programmable interface, it allows users to set cutting dimensions and sequences for repetitive tasks. Safety features, robust construction, and high-speed performance make it ideal for large-scale printing, packaging, and publishing industries.
Technical Specifications
| Model | 33 | 37 | 43 |
| Cutting Length | 840 mm (33”) | 900 mm (37”) | 1070 mm (43”) |
| Cutting Width | 840 mm (33”) | 900 mm (37”) | 1070 mm (43”) |
| Clamp Opening | 100 mm (4”) | 113 mm (4½”) | 125 mm (5”) |
| Cuts per Minute (approx) | 30 | 25 | 20 |
| Power required | 2 H.P. | 3 H.P. | 3 H.P. |
| Power for Motorized Back Gauge | ½ H.P. | ½ H.P. | ½ H.P. |
| Machine Dimensions | 1650 x 1650 mm (66” x 66”) |
1950 x 1950 mm (78” x 78”) |
2150 x 2150 mm (86” x 86”) |
