Product Details
Color
Grey
Driven Type
Electric

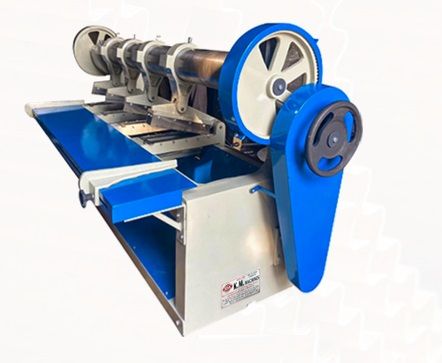

Our machine is highly reputed for accuracy and quality. The machine is provided with three slotting heads and one corner head. These heads can be set quickly and accurately by handle. Screw arrangement is provided for adjustment of side cutter after regrinding.
Technical Data
| Size | Motor H.P. | Max. Slot Dept | Weight App. (MT) | Floor Space |
| 65” | 2 | 17” | 1.8 | 7’×4’ |
| 75” | 3 | 18” | 2.2 | 8’×4’ |
| 85” | 3 | 18” | 2.4 | 9’×4’ |
| 95” | 5 | 18” | 3 | 10’×4’ |
