| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Packaging Type | Complete Fabrication And Synchronization Of All Machines Together |
| Material | Quality Raw Material |
| Type | Automatic Corrugation Machine |
| Click to view more | |
Product Details
Country of Origin
India
Ply
5
Specialities
High Strength, Better Efficiency, Long Functionality, Reliable Performance
Specifications
High Speed Bearing Mounted With Variable Speed Drive,Drum Type Heaters,Self Loading Reel Stand,Triplex Heating Unit Before Gluing,On Line Duplex Pasting Unit,Heating Cooling And Drying Chamber With Hot Plates,Heavy Duty Pull Unit,On Line Creasing And Slit
Additional Features
Overhead Bridge, Conveyor Take Up Belts, Motorized Web Adjustment Unit, Gangway, Stairs

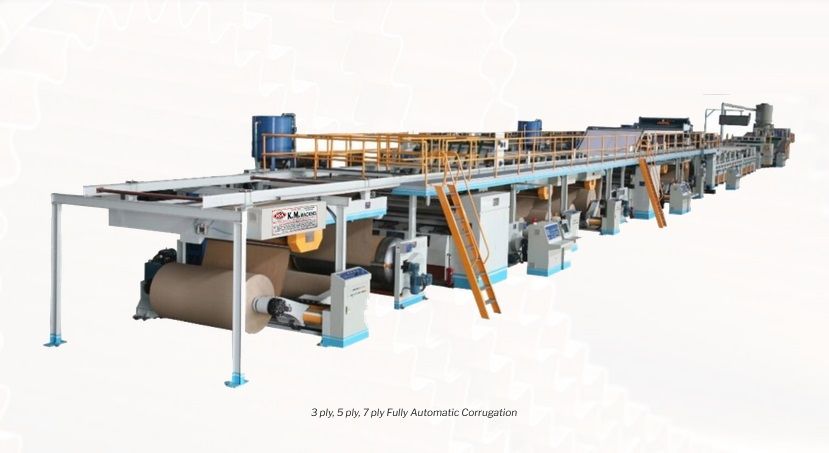

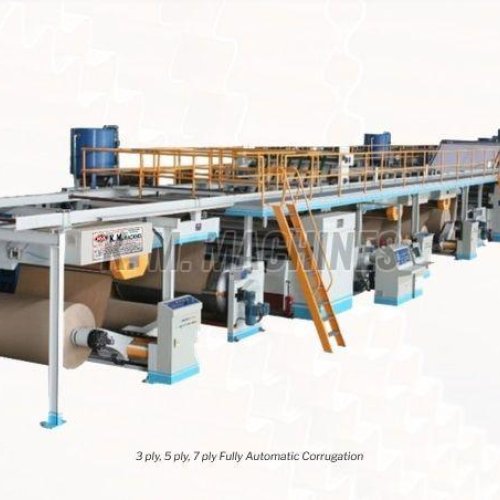

We are offering an exclusive range of Automatic Corrugation Machine. Quality-approved 3 / 5 Ply Automatic Corrugation Plant comes under this range. These products are appreciable among our valuable customers for features like high strength, better efficiency, long functionality and reliable performance. Equipped with all the latest tools & machines, the offered range is manufactured using quality raw material at our infrastructure. Besides, clients can avail these products according to their needs.
Specifications
5 ply corrugated box making plant:
- High speed bearing mounted corrugation machine with variable speed drive- 2 nos
- Drum type heaters – 4 nos
- Self loading reel stand- 5 nos
- Triplex heating unit before gluing
- On line duplex pasting unit
- Heating cooling and drying chamber (consist of fourteen hot plates)
- Heavy duty pull unit
- On line creasing and slitting unit
- Heavy duty cut off unit
3 ply corrugated box making plant:
- High speed bearing mounted corrugation machine with variable speed drive
- Drum type heaters – 2 nos
- Self loading reel stand- 3 nos
- Duplex heating unit before gluing
- On line simplex pasting unit
- Heating cooling and drying chamber (consist of nine hot plates)
- Heavy duty pull unit
- On line creasing and slitting unit
- Heavy duty cut off unit. The plants above include complete fabrication and synchronization of all machines together
- Overhead bridge and conveyor take up belts. Motorized web adjustment unit, gangway and stairs
