| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Specialities | In-house Casting For Better Quality Control,UV Design Of Flute Rolls For Greater Strength,In-house Design And Grinding Of Flute Rolls,Vertical Integration Of Manufacturing Processes |
| Usage | Paper Corrugating |
| Country of Origin | India |
| Click to view more | |
Product Details
Shape
Rectangular
Material
Mild Steel
Model
High Speed Oblique Type

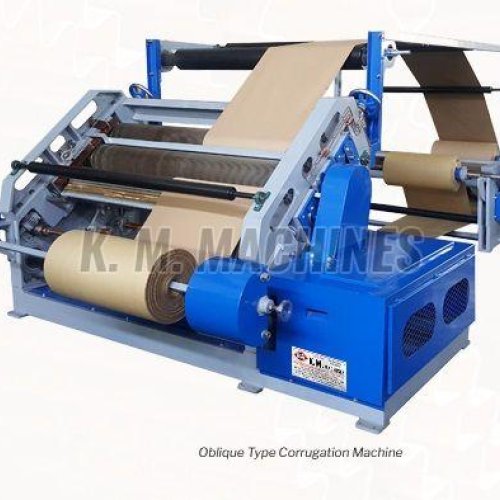

KM High Speed Oblique type Single Face Paper Corrugating Machine (Bearing Mounted) Oblique Type High Speed model offers a high rate of production on the roller bearing for smooth running and longer life. The machine is fitted with gear box which runs in oil bath. The machine is provided with hydraulic self loading twin shaft reel stand and 2 pre heating cylinders. Slitter blades are optional with the machine
Features
- In-house casting for better quality control and build a stronger and heavier profile
- UV Design of flute rolls to add greater strength in corrugated board, especially helpful for bigger sizes
- In-house design and grinding of flute rolls to build perfect E, F and C flute boxes
- Vertical integration of all the manufacturing processes to build a world class product
Technical Data
| Size | 36" | 42” | 52” | 62” | 66” | 72" | 75" | 80" |
| Power (HP) | 9.5 | 9.5 | 9.5 | 9.5 | 12 | 13 | 13 | 13 |
| Speed (m/min) | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 |
| Heating load (kw) | 33 | 33 | 33 | 39 | 42 | 45 | 45 | 45 |
| Pre-Heater Load (KW) | 6 | 6 | 6 | 8 | 8 | 10 | 10 | 10 |
