| Business Type | Manufacturer, Exporter, Supplier |
| Specialities | High Speed,Bearing Mounted,Gear Box With Oil Bath,Hydraulic Self Loading Twin Shaft Reel Stand,2 Pre Heating Cylinders,Variable Speed Drive,Slithering Blades Optional |
| Type | Oblique Type Single Facer Paper Corrugating Machine |
| Country of Origin | India |
| Click to view more | |
Product Details
Usage
Cutting Tools Industry
Shape
Rectangular
Material
Mild Steel,Steel

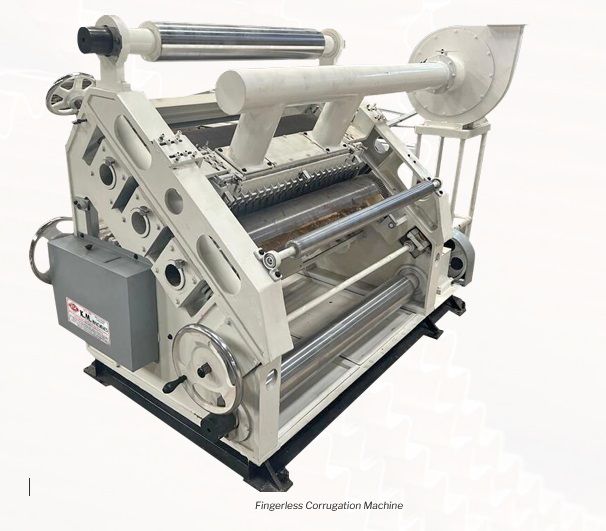

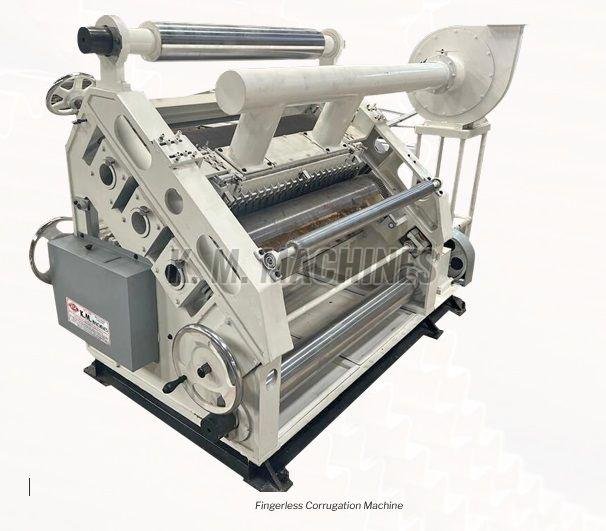

KM Fingerless High Speed Oblique type single facer Paper Corrugating Machine (Bearing Mounted) finds place in top packaging houses around the globe due to its superior built, durability, high rate of production as well as staggeringly low maintenance costs
Oblique type High Speed model offers a high rate of production on the roller bearing for smooth running and longer life. The machine is fitted with gear box which runs in oil bath. The machine is provided with hydraulic self loading twin shaft reel stand and 2 pre heating cylinders. Variable speed dive and slithering blades are optional with the machine
Technical Data
| Size | 42” | 52” | 62” | 66” | 72" | 75" | 80" |
| Power (HP) | 9.5 | 9.5 | 9.5 | 12 | 13 | 13 | 13 |
| Power for Blower (HP) | 7.5 | 7.5 | 10 | 10 | 15 | 15 | 15 |
| Speed (m/min) | 35 | 35 | 35 | 35 | 35 | 35 | 35 |
| Heating load (kw) | 40 | 42 | 42 | 45 | 48 | 48 | 48 |
| Pre-Heater Load (KW) | 6 | 6 | 8 | 8 | 10 | 10 | 10 |
