5 Piece (MOQ)
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Machine Type | Fingerless |
| Capacity | 0-10 ton/day,4 TO 5 TON |
| Automatic Grade | Semi Automatic |
| Click to view more | |
Product Details

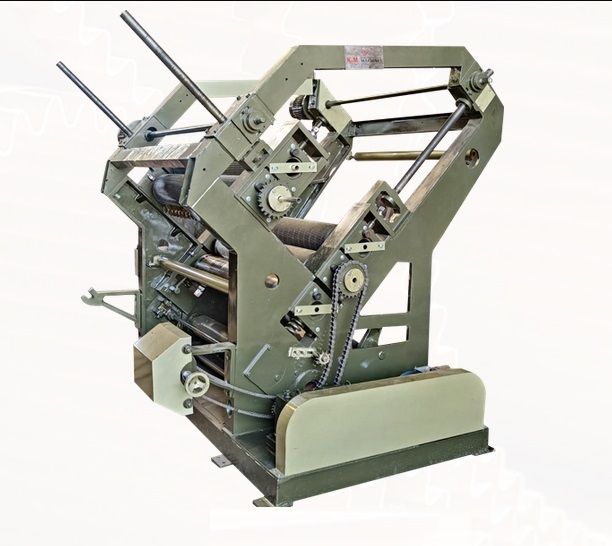

K. M. Machines India Double Profile Fingerless Corrugation Machine with Self Loading system is a modern gem focused on producing high strength high quality corrugation boards at high speeds.
K. M. Machines India is trusted and loved by corrugation manufacturers around the globe. Known for its versatility, durability and value-for-money the machine is at heart of corrugation manufacturers with medium to large scale operations and those seeking to enter the big league.
Machine finds utility in producing regular and printed corrugated boxes from a single machine source.
This is a high Speed oblique type Paper Corrugating Machine with twin flute/Double profile system, designed to use two (2) different flutes in one corrugation machine without changing the flutes.
Salient Features
- Suitable to run two flutes without changing the flute rolls
- 2 Flute roll sets (with Narrow/E flute preferred generally)
- Comes with Heater, Counter, AC Drive and Reel Stand
- Jumbo reel stand
- Auto Gum Circulation and Slitter Attachment are optional features
- HSCDP is finger type operation and is fingerless operation as upgradation in HSCDP category
Technical Data
| Size | 42” | 52” | 62” | 66” | 72" |
| Power (HP) | 13.5 | 13.5 | 13.5 | 16 | 17 |
| Power for Blower (HP) | 7.5 | 7.5 | 10 | 10 | 15 |
| Speed (m/min) | 35 | 35 | 35 | 35 | 35 |
| Connected Heating load (kw) | 40 | 42 | 42 | 45 | 48 |
| Pre-Heater Load (KW) | 6 | 6 | 8 | 8 | 10 |
